If the first creatine capsules meet the target weight but later samples become inconsistent, changing the raw-material grade immediately may miss the cause. Powder feeding, consolidation, machine settings and the complete formulation all deserve investigation.
For brands and OEMs, the useful question is whether the proposed creatine grade can maintain acceptable filling performance throughout the intended production run.

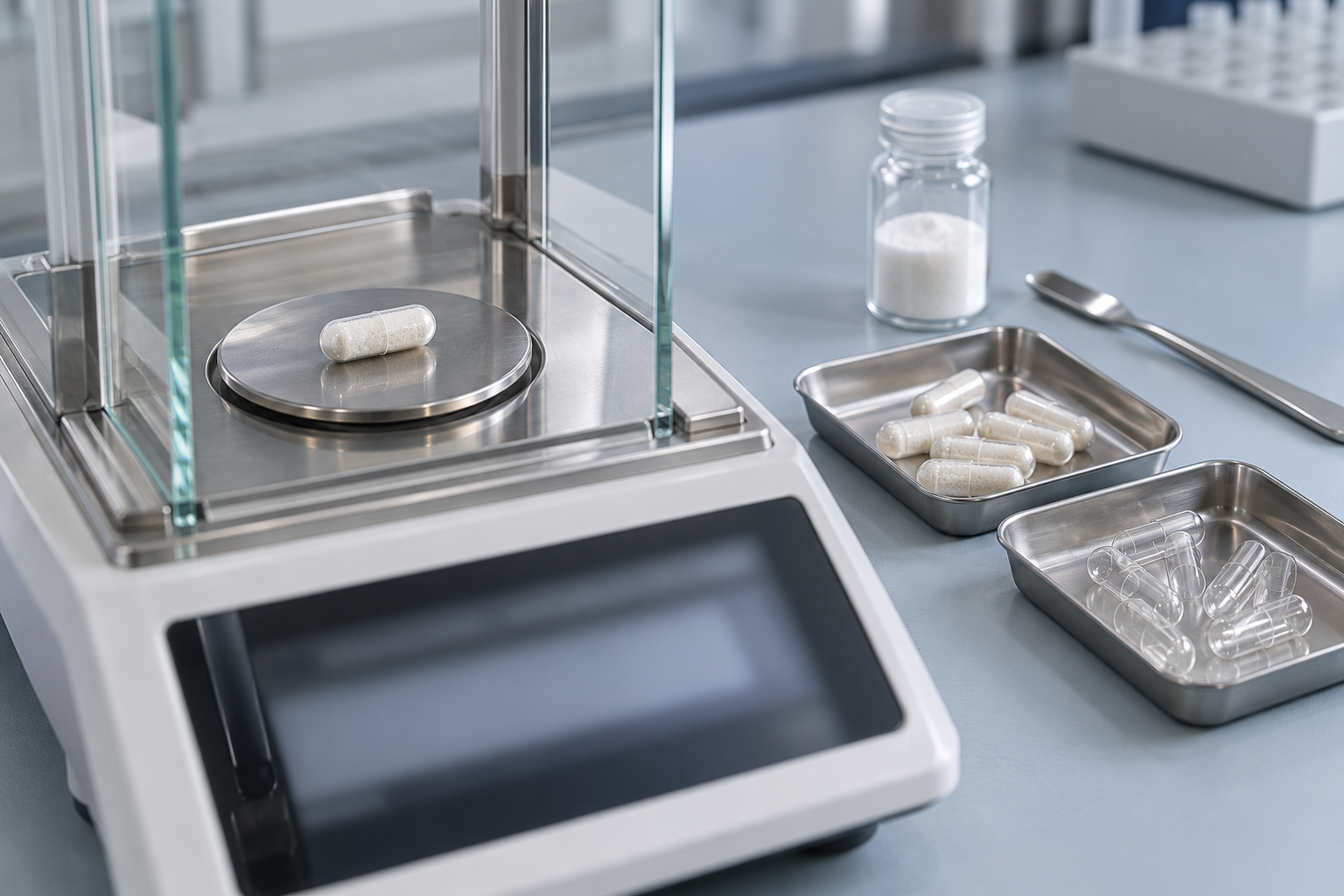

Separate Average Fill Weight from Variation
A batch can have an acceptable average while individual capsules vary too widely. A gradual shift in average weight is also different from an increase in capsule-to-capsule variation. Record both rather than relying on one combined result.
Confirm whether the measurement represents the filled capsule or its net powder contents, and account for shell-weight variation using an appropriate procedure. For blended products, consistent powder weight also needs to be distinguished from consistent creatine content.
Check the Powder and the Process Together
Research using pharmaceutical model powders has linked capsule fill weight and variability with powder properties. A 2013 dosator study found significant relationships with flow characteristics; a separate 2014 study highlighted the importance of process parameters alongside material attributes. These findings support investigating the material and equipment together. They do not establish a universal rule for creatine. [1,2] pubmed.ncbi.nlm.nih.gov
Review the events around the change: Was the hopper refilled? Did the machine restart after a stoppage? Were speed, dosing depth or consolidation settings adjusted? A record that connects weight checks with these events can help narrow the next investigation.
Compare Creatine Grades Under Controlled Conditions
An 80-, 200- or 500-mesh description is not a complete capsule-filling specification. Review particle-size distribution, bulk and tapped density, relevant moisture information and the actual formulation before comparing grades.
Use the intended capsule shell and filling equipment. Keep the formula, operating conditions and measurement procedure consistent enough for a meaningful comparison, and record any adjustments. If the product contains excipients or other active ingredients, evaluate the complete blend.
The objective is to find a suitable operating range for the proposed material and process. A finer particle size alone does not establish better filling performance.

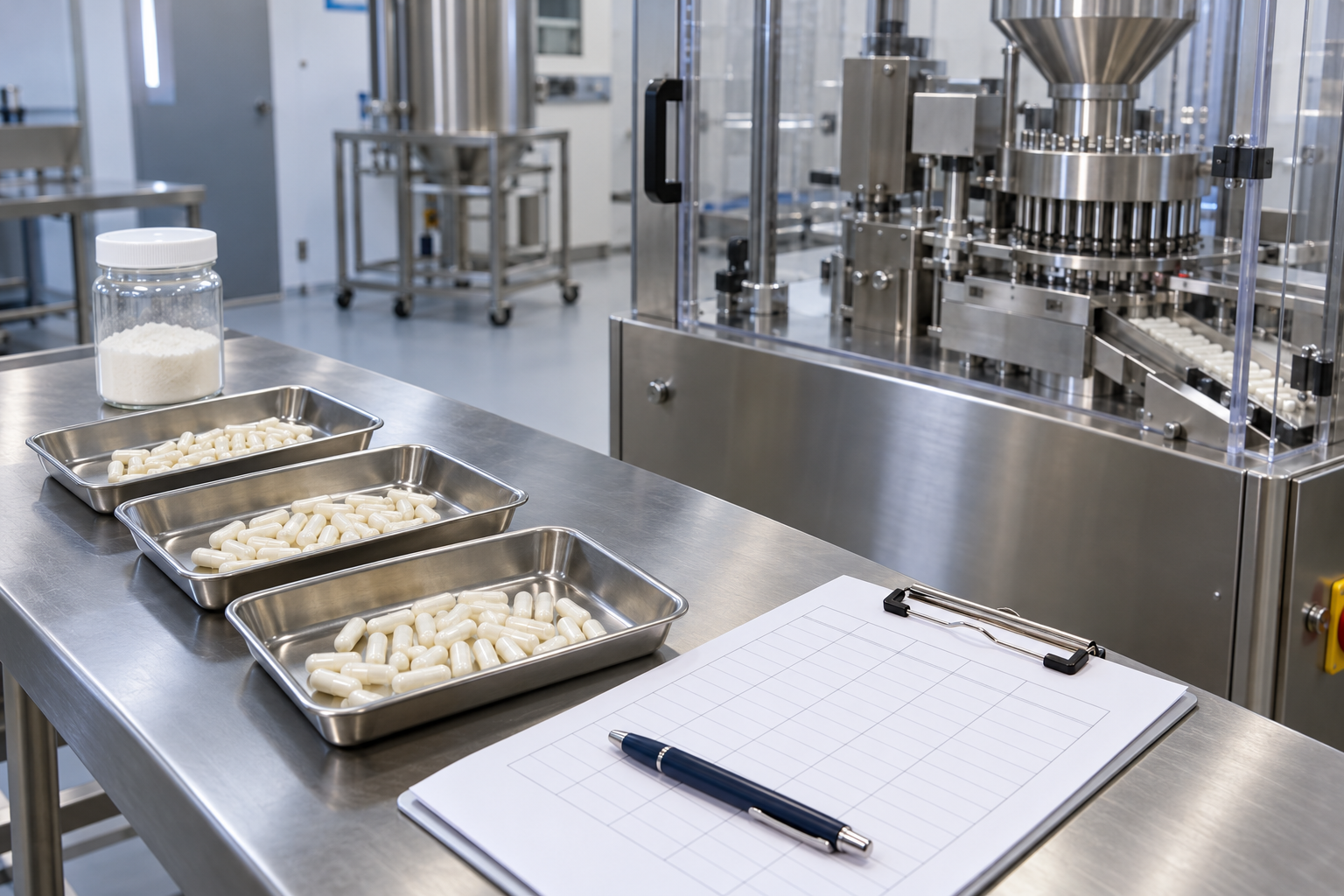

Use a Trial That Can Reveal Changes During the Run
As a practical trial-planning approach, consider checks after startup, during steady operation, around refills or restarts, and toward the end of the run. This is not a prescribed sampling standard: the actual plan and acceptance criteria should be set by the manufacturer for its process.
Alongside fill-weight results, record machine speed, settings, feeding observations, interventions and rejected units. A grade that reaches the target weight only after repeated adjustments needs a different commercial assessment from one that runs consistently under the agreed conditions.
Turn the Results into a Better Supplier Brief
When discussing creatine supply, send the target net powder weight, capsule size, machine type and any relevant blend information. Explain whether the issue is average fill weight, variation, feeding interruptions or a change observed after a specific event.
SRS Nutrition Express offers creatine monohydrate in multiple particle-size options. We can provide applicable specifications, representative COAs, sample options and available particle-size or density information for evaluation.
Share your destination market and estimated volume with the production brief. SRS can discuss a proposed grade and the supporting information for your trial. Final suitability should be established on the intended line before commercial ordering.
Evidence Boundaries
- The cited capsule-filling studies used pharmaceutical model powders or blends, not SRS creatine. They support general investigation principles, not creatine-specific performance guarantees.
- The suggested trial checkpoints are practical considerations, not a regulatory or pharmacopoeial sampling standard.
- No universal optimum mesh size, fill-weight tolerance or machine setting is established here. Acceptance criteria depend on the formulation and process.
- Capsule weight checks do not, by themselves, establish creatine content uniformity in a multi-ingredient product.
Recommended Reading
- Creatine Monohydrate Capsules: Density and Fill Limits for Manufacturers
- Mesh Size Is Not Particle-Size Distribution: How Should Buyers Specify Creatine Powder?
- Creatine Monohydrate Bulk Density: How Buyers Should Compare Supplier Data？
References
- Osorio JG, Muzzio FJ. Effects of powder flow properties on capsule filling weight uniformity. Drug Development and Industrial Pharmacy. 2013;39(9):1464–1475.
- Faulhammer E, et al. The effects of material attributes on capsule fill weight and weight variability in dosator nozzle machines. International Journal of Pharmaceutics. 2014;471(1–2):332–338.
- United States Pharmacopeia. General Chapter 〈616〉: Bulk Density and Tapped Density of Powders. USP–NF. 2023.
